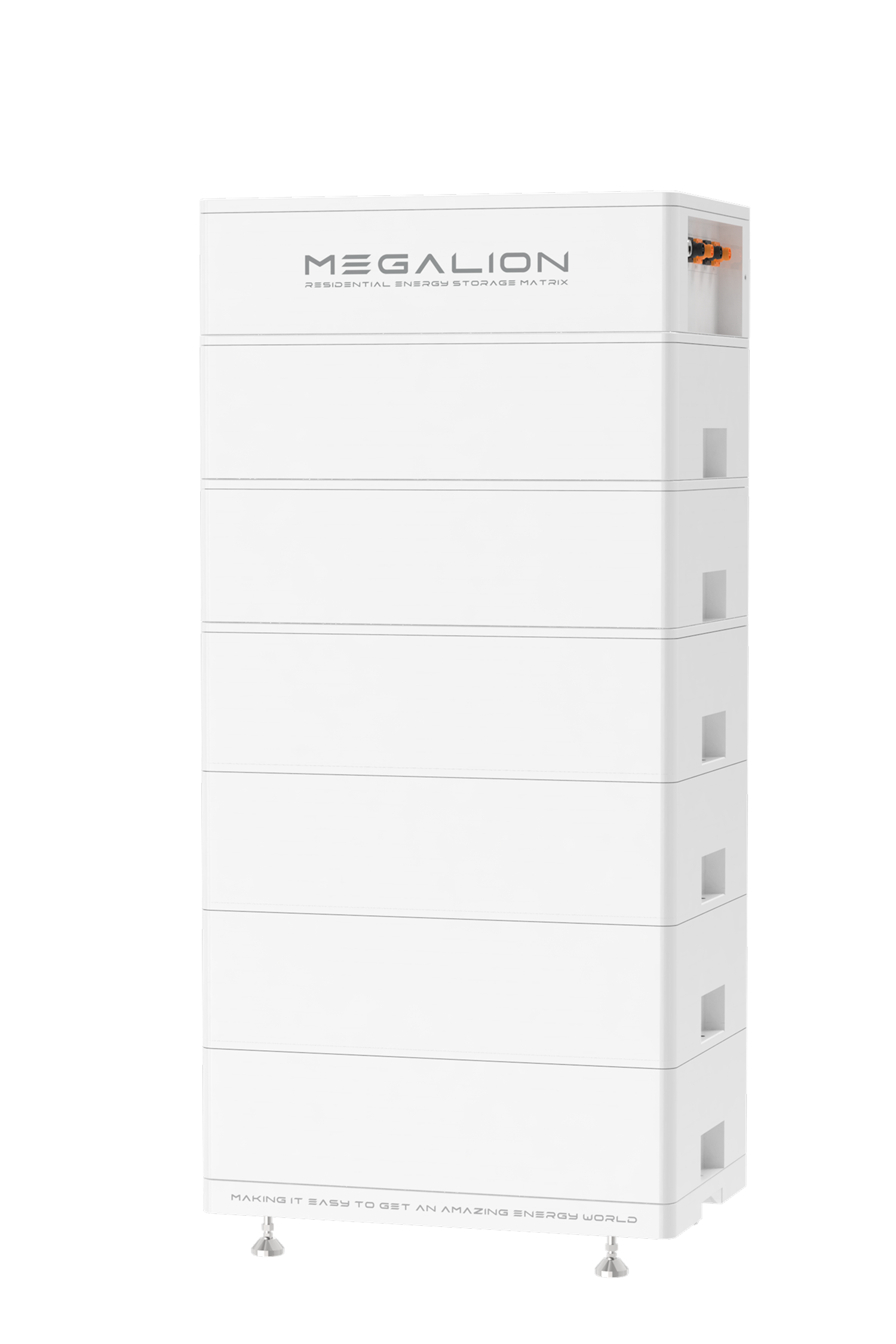

Residential ESS | MESS-HV16.13K / MESS-HV21.5K / MESS-HV26.88K / MESS-HV32.26K

16.13kWh/21.5kWh/26.88kWh/32.26kWh | 160kg/205kg/250kg/295kg

Easy Installation

Modular design, plug and play

Easy Installation

Modular design, plug and play

Easy Installation

Modular design, plug and play

Easy Installation

Modular design, plug and play

Easy Installation

Modular design, plug and play

Flexible scalability

Stacked design, support maximum 10 packs

High safety

prismatic LFP batteries, safe and reliable

Ultra-Intelligence

Big data plus Al help to predict power charge/discharge

Specification Parameter

Electrical Parameter

Battery Chemistry

LFP

Battery Capacity

120Ah

System Configuration

1P42S/1P56S/1P70S/1P84S

Total Energy

16.13kWh/21.5kWh/26.88kWh/32.26kWh

Usable Energy

10.71kWh

Nominal Voltage

134.4V/179.2V/224V/268.8V

Voltage Range

119.7-150.36V/159.6-200.48V/199.5-250.6V/239.4-300.72V

Nominal Output Power

8kW

Charging/Discharging Current

100A

Cycle Life

≥6000

Communication Interface

CAN

Monitoring Type

Wifi/4G(optional)

Heading

Heading

General Parameter

Size（W * D * H）

600mm*423mm*763mm/600mm*423mm*933mm/600mm*423mm*1103mm/600mm*423mm*1273mm

Weight

≤160kg/≤205kg/≤250kg/≤295kg

Installation Method

Outdoor/Indoor;Floor Mounted

Warranty

10 Years

Certification

IEC62619;IEC60730-1;IEC/EN62477;IEC62040-1;CE;UN38.3;

Working Environment

IP Ingress Protection

IP65

Humidity

0~95%RH (No condensation)

Environment Temperature

Charge 0-55℃ Discharge -25- 55℃

Storage Temperature Range

-20℃ ~ 35℃

‍Altitude
‍≤2000m

Electrical Parameter

Battery Chemistry

LFP

Battery Capacity

120Ah

System Configuration

1P42S/1P56S/1P70S/1P84S

Total Energy

16.13kWh/21.5kWh/26.88kWh/32.26kWh

Usable Energy

10.71kWh

Nominal Voltage

134.4V/179.2V/224V/268.8V

Voltage Range

119.7-150.36V/159.6-200.48V/199.5-250.6V/239.4-300.72V

Nominal Output Power

8kW

Charging/Discharging Current

100A

Cycle Life

≥6000

Communication Interface

CAN

Monitoring Type

Wifi/4G(optional)

Heading

Heading

General Parameter

Size（W * D * H）

600mm*423mm*763mm/600mm*423mm*933mm/600mm*423mm*1103mm/600mm*423mm*1273mm

Weight

≤160kg/≤205kg/≤250kg/≤295kg

Installation Method

Outdoor/Indoor;Floor Mounted

Warranty

10 Years

Certification

IEC62619;IEC60730-1;IEC/EN62477;IEC62040-1;CE;UN38.3;

Working Environment

IP Ingress Protection

IP65

Humidity

0~95%RH (No condensation)

Environment Temperature

Charge 0-55℃ Discharge -25- 55℃

Storage Temperature Range

-20℃ ~ 35℃

‍Altitude
‍≤2000m

Applications

Residential

Portable Use
